경종/발신기/표시등/송수화기

동우기전
동우기전

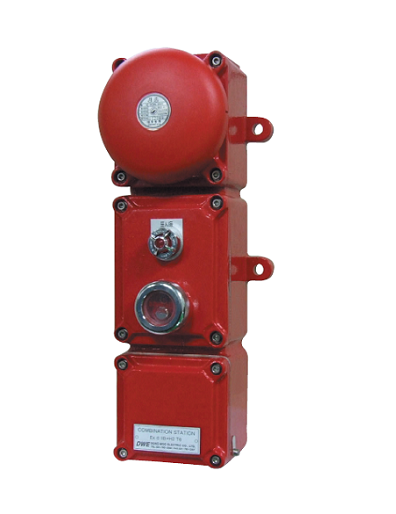

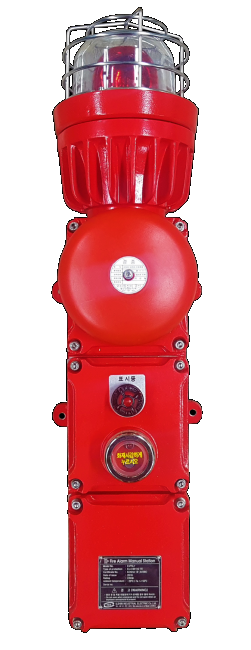

Flame-proof Fire Alarm Manual Station

(속보세트) FCS

  • 인증 : Ex d IIB T6 for Zone 1·2 , Class Ⅰ Division 1·2
                   Ex d IIB+H2 T6 for Zone 1·2 , Class Ⅰ Division 1·2
  •  Body: Cast Aluminum Alloy
  • Rated Voltage: DC 24V
  • Sound Level of Bell: 90dB or more
일신산업전기
일신산업전기

Fire Protection Equipments_방폭 발신기

MODEL: ExPBL* Alarm Light

인증 : Ex d ⅡB+H2 T6 for Zone 1·2
          Ex tD A21 IP66 T80℃ Zone 21·22
Standard Color
  • Color : 7.5R 4/14(Red)
Standard Material
  • Main Body: Cast Aluminum Alloy
  • Cover: Cast Aluminum Alloy
  • Glass: Heat Resistant Hard Glass
  • Guard: Stainless Steel
  • Bell: Die-Cast Aluminum
Technical Data
  • Rated Voltage: DC 24V
  • Warning Light: LED
  • Sound Level: 90dB/1m
  • Bell: DC24V MAX, 50mA
  • Hub: 3/4, 1 or user scope
  • Weight: Body 6.8kg / Bell Cover 1.1kg
일신산업전기
일신산업전기

Fire Protection Equipments_방폭 발신기

MODEL: ExPBL*

인증 : Ex d ⅡB+H2 T6 for Zone 1·2
          Ex tD A21 IP66 T80℃ Zone 21·22
Standard Color
  • Color : 7.5R 4/14(Red)

Standard Material

  • Main Body: Cast Aluminum Alloy
  • Cover: Cast Aluminum Alloy
  • Glass: Heat Resistant Hard Glass
  • Guard: Stainless Steel
  • Bell: Die-Cast Aluminum

Technical Data

  • Rated Voltage: DC 24V
  • Warning Light: LED
  • Sound Level: 90dB/1m
  • Bell: DC24V MAX, 50mA
  • Hub: 3/4, 1 or user scope
  • Weight: Body 6.8kg / Bell Cover 1.1kg
일신산업전기
일신산업전기

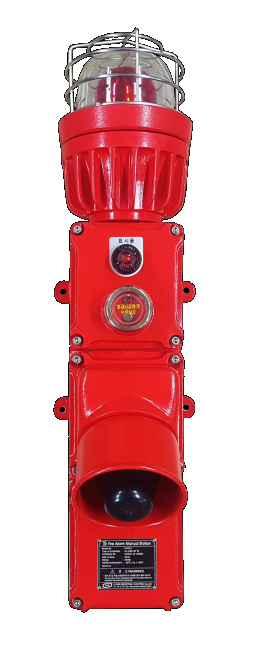

Fire Protection Equipments_방폭 발신기

MODEL: ExPSL*Alarm+Siren

인증 : Ex d ⅡB+H2 T6 for Zone 1·2
          Ex tD A21 IP66 T80℃ Zone 21·22

Standard Color

  • Color : 7.5R 4/14(Red)

Standard Material

  • Main Body: Cast Aluminum Alloy
  • Cover: Cast Aluminum Alloy
  • Glass: Heat Resistant Hard Glass
  • Guard: Stainless Steel
  • Bell: Die-Cast Aluminum

Technical Data

  • Rated Voltage: DC 24V
  • Warning Light: LED
  • Sound Level: 90dB/1m
  • Bell: DC24V MAX, 50mA
  • Hub: 3/4, 1 or user scope
  • Weight: Body 6.8kg / Bell Cover 1.1kg
동우기전
동우기전

Flame-proof Shellfire Manual _포화설비

MODEL: FFMS

인증 : Ex d IIB T6 for Zone 1·2 , Class Ⅰ Division 1·2
        Ex d IIB+H2 T6 for Zone 1·2 , Class Ⅰ Division 1·2
  •  Body : Cast Aluminium Alloy
  • Rated Voltage : DC 24V
  • Emergency : Push Button with Acrylic Cover
동우기전
동우기전

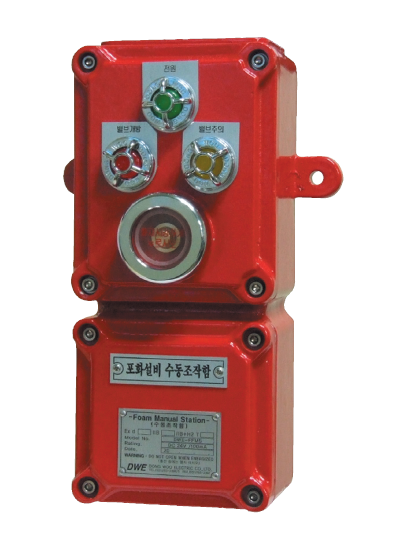

Flame-proof Foam Manual Station

(폼 메뉴얼)

인증 : Ex d IIB T6 for Zone 1·2 , Class Ⅰ Division 1·2
            Ex d IIB+H2 T6 for Zone 1·2 , Class Ⅰ Division 1·2
Body : Cast Aluminium Alloy
Rated Voltage : DC 24V
Emergency : Push Button with Acrylic Cover



동우기전
동우기전

Flame-proof Hydrant Outdoor Lamp Box

(옥외소화전램프) FBCS

인증 : Ex d IIB T6 for Zone 1·2 , Class Ⅰ Division 1·2
            Ex d IIB+H2 T6 for Zone 1·2 , Class Ⅰ Division 1·2
  • Body : Cast Aluminium Alloy
  • Rated Voltage : DC 24V
  • Entry Size : 1/2" ~ 1"
동우기전
동우기전

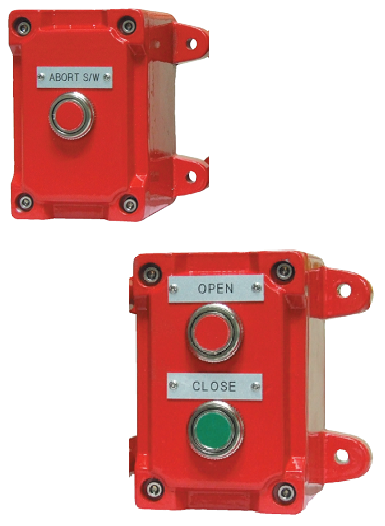

Flame-proof Abort Switch & Deluge Valve Box

MODEL: FBCS

인증 : Ex d IIB T6 for Zone 1·2 , Class Ⅰ Division 1·2
        Ex d IIB+H2 T6 for Zone 1·2 , Class Ⅰ Division 1·2
  • Body : Cast Aluminium Alloy
  • Rated Voltage : DC 24V
동우기전
동우기전

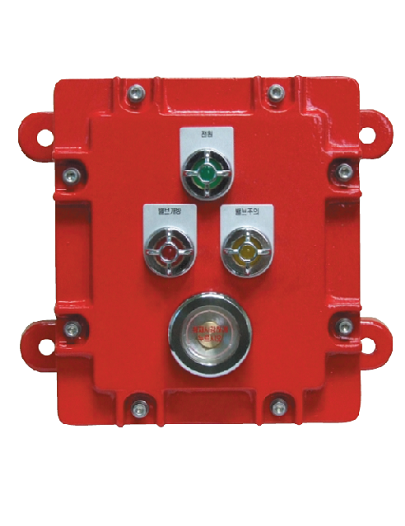

Flame-proof Super Visory Panel

(스프링쿨러) FSVP

인증 : Ex d IIB T6 for Zone 1·2 , Class Ⅰ Division 1·2
          Ex d IIB+H2 T6 for Zone 1·2 , Class Ⅰ Division 1·2
  • Body: Cast Aluminum Alloy
  • Rated Voltage: DC 24V
  • Emergency: Push Button with Acrylic Cover
일신산업전기
일신산업전기

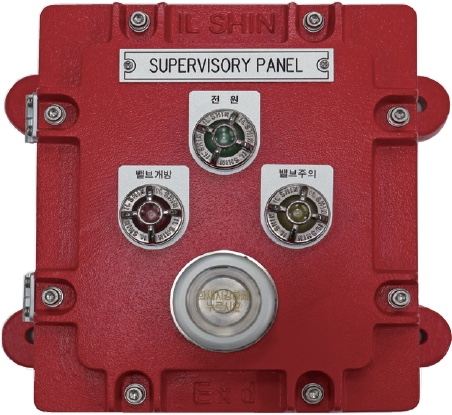

Fire Protection Equipments_슈퍼비죠리판넬

MODEL: IS-FSVP

인증 : Ex db IIB+H2 T6 Gb IP66
        Ex tb IIC T80°C Db IP66


Standard Color
  • Color : 7.5R 4/14(Red)

Standard Material

  • Main Body: Cast Aluminum Alloy
  • Bolt & Washer: Stainless Steel
  • Unit: Push Button

Technical Data

  • Rated Voltage: DC 24C
  • Rated Frequency: 50/60Hz
동우기전
동우기전

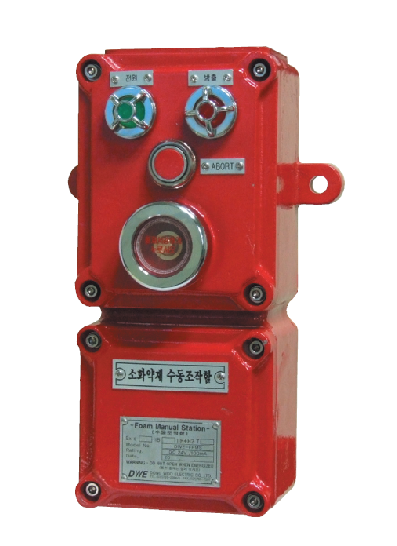

Flame-proof Fire Extinguish Manual

(소화약제) FFMS

인증 : Ex d IIB T6 for Zone 1·2 , Class Ⅰ Division 1·2
          Ex d IIB+H2 T6 for Zone 1·2 , Class Ⅰ Division 1·2
  • Body: Cast Aluminum Alloy
  • Rated Voltage: DC 24V
  • Sound Level of Bell: 90dB or more

동우기전
동우기전

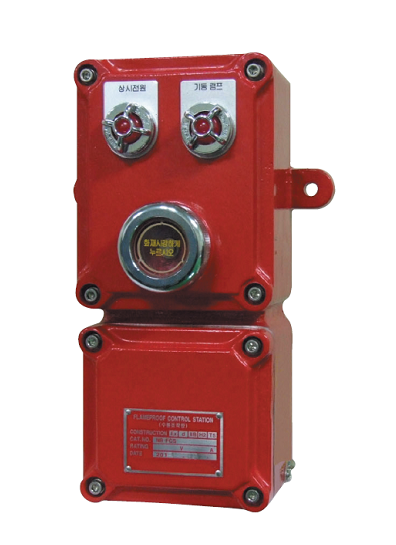

Flame-proof Mov Manual

MODEL: FFMS

인증 : Ex d IIB T6 for Zone 1·2 , Class Ⅰ Division 1·2
          Ex d IIB+H2 T6 for Zone 1·2 , Class Ⅰ Division 1·2


  • Body : Cast Aluminium Alloy
  • Rated Voltage : DC 24V
일신산업전기
일신산업전기

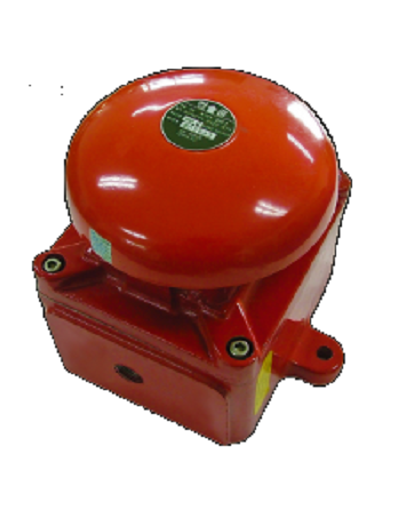

내압방폭 벨시그널_ Fire Protection Equipments

MODEL: FXBS

인증 : Ex d ⅡB+H2 T6 for Zone 1·2

Standard Color
  • Color : 7.5R 4/14(Red)

Standard Material

  • Main Body: Cast Aluminum Alloy
  • Gong: Aluminum Press
  • Bolt & Nut: Stainless Steel
  • Horn: Aluminum Sheet

Technical Data

  •  Rated Voltage : AC 240V MAX
  • Sound Level of Bell : 90dB/1m
일신산업전기
일신산업전기

내압방폭 알람시그널_ Fire Protection Equipment's

MODEL: FXAL

인증 : Ex d ⅡB+H2 T6 for Zone 1·2

Standard Color
  • Color : 7.5R 4/14(Red)

Standard Material

  • Main Body: Cast Aluminum Alloy
  • Gong: Aluminum Press
  • Bolt & Nut: Stainless Steel
  • Horn: Aluminum Sheet

Technical Data

  • Rated Voltage: AC 110V~240V, DC 24V
  •  Lamp: LED 8W
  • Sound Level: 90dB/1m
  • Lamp Type: LED, Flash type Rotary
  • Sound: 경종, 경보, 구급, 화재, 멜로디
  • Hub: PF22C*2EA (W/blind plug*1EA)
일신산업전기
일신산업전기

Fire Protection Equipment's_ 내압방폭 혼스피커

MODEL: IS-FHS-**

인증 : Ex db IIB+H2 T6 Gb IP65
        Ex tb IIC T80°C Db IP65


Standard Color
  • Color : 7.5R 4/14(Red)

Standard Material

  • Main body: Cast Aluminum Alloy
  • Horn: Aluminum Sheet
  • Speaker: Cast Aluminum Alloy
  • Bolt & Nut: Stainless Steel
  • Support: Stainless Steel


Technical Data

  • ·Rated Voltage: AC100~240V / DC 24V
  • Rated Frequency: 50/60Hz
  • Rated Wattage: Max.25W, 8Ω
  • Tamp: -20°C ≤ Ta ≤ +60°C
일신산업전기
일신산업전기

내압방폭 전자사이렌_ Fire Protection Equipment's

MODEL: IS-FES-**

인증 : Ex d IIB+H2 T6 IP65 for Zone 1·2
        E tD A21 T80°C Db IP65 for Zone 21·22



Standard Color
  • Color : 7.5R 4/14(Red)

Standard Material

  •  Main Body: Cast Aluminum Alloy
  • Bolt & Nut: Stainless Steel
  • Speaker: Cast Aluminum Alloy
  • Support: Stainless Steel
  • Horn: Aluminum Sheet


Technical Data

  • Rated Voltage: DC 24V
  • Sound Level: 90dB /1m
  • Rated Frequency: Max 25W, 8Ω
  • Tamp: -20°C ≤ Ta ≤ +60°C
